All new
S-CAB Z
Single cab Z — upgraded workhorse
Starts at 15.89L
Colours
Choose your finish
Explore available exterior colours. Select a swatch to preview, then enlarge for a closer look.
Vehicle specifications
ISUZU S-CAB Z
Complete technical details sourced from Mahavir ISUZU — engine, dimensions, safety, and equipment.
General
4 items- Model
- S-CAB Z 2WD HR
- Emission
- BS6 Stage 2
- Body Style
- Pickup
- Drive
- 4x2
Engine
6 items- Type
- 4 Cylinder, Common Rail, VGT Intercooled Diesel
- Displacement
- 2499 cc
- Max Power
- 58 kW (78 hp) @ 3800 rpm
- Max Torque
- 176 Nm @ 1500-2400 rpm
- Fuel Type
- Diesel
- Drivetrain
- 2WD
Dimensions
6 items- Overall Vehicle (LxWxH)
- 5295 mm x 1860 mm x 1840 mm
- Wheelbase
- 3095 mm
- Cargo Deck (inner) (LxWxH)
- 1485 mm x 1530 mm x 465 mm
- Payload
- 935 kg
- GVW
- 2850 kg
- Kerb Weight
- 1915 kg
Transmission
2 items- Drive Type
- 4x2
- Gearbox
- 5 Speed, Manual
Brakes and Suspensions
5 items- Front Suspension
- Double Wishbone, Coil Springs & stabilizer
- Rear Suspension
- Semi-Elliptic Leaf Spring
- Rim Size
- 16 x 6.5J-33
- Tyre Size
- 205R16C
- Tyre Type
- Radial
Steering
4 items- Brake Type
- Hydraulic Brake with large booster (26.67 cm) and LSPV
- Front Brake
- Ventilated Disc with Twin Pot Caliper
- Rear Brake
- Drum
- Steering Type
- Hydraulic Power Assist with Tilt Adjustment
Capacities
3 items- Fuel tank capacity
- 55 litre
- DEF Tank
- 14 litre
- Seating Capacity
- 5
Specifications may vary by variant. Contact Mahavir ISUZU for the latest ex-showroom pricing and availability.
Equipment highlights
Features that work harder
- 01
Updated S-CAB Z styling
- 02
Commercial payload focus
- 03
Refined presence for operators
- 04
Backed by Mahavir ISUZU service centres
FAQ
Common questions
The price of the ISUZU S-CAB Z may vary based on location and applicable offers. Contact Mahavir ISUZU for the latest price and offers.
About the car
ISUZU S-CAB Z
S-CAB Z brings an upgraded expression of ISUZU’s single-cab commercial lineup — combining work-ready utility with refreshed styling cues for operators who want more presence.
About the company
Mahavir ISUZU
Mahavir ISUZU is an authorized ISUZU dealership under the Mahavir Group, delivering sales, service and ownership support across Telangana and Andhra Pradesh — modern facilities, skilled teams, and genuine parts.

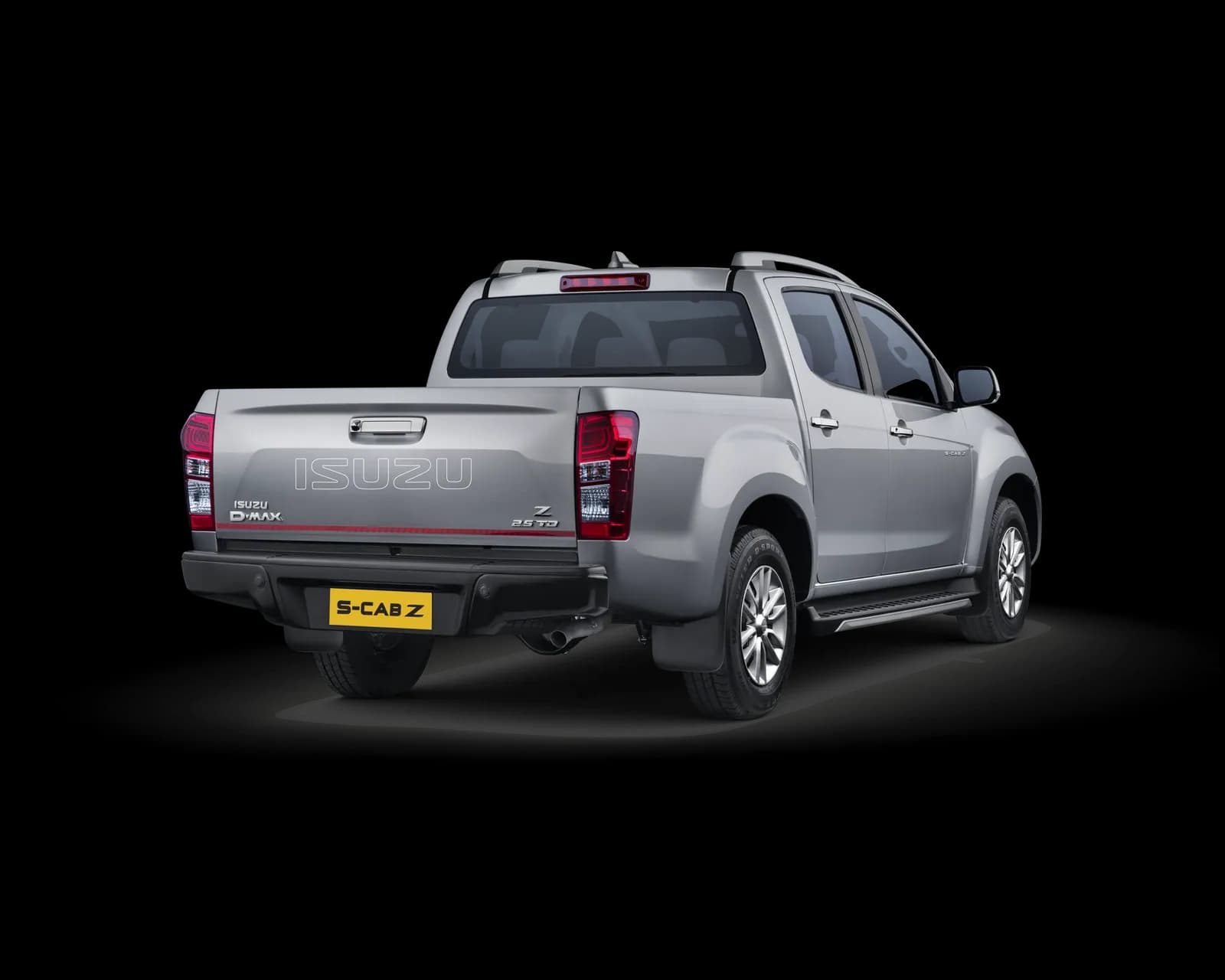

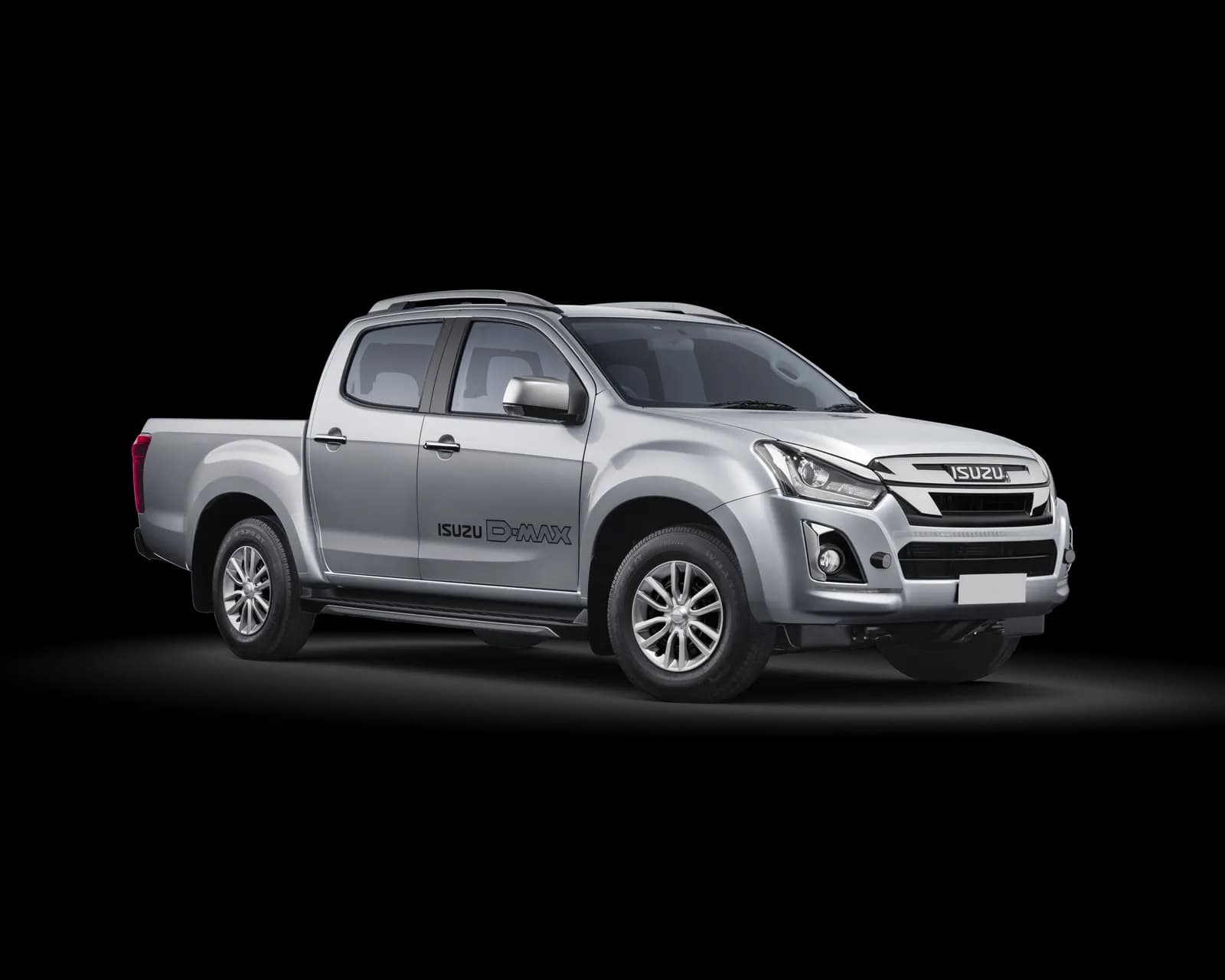

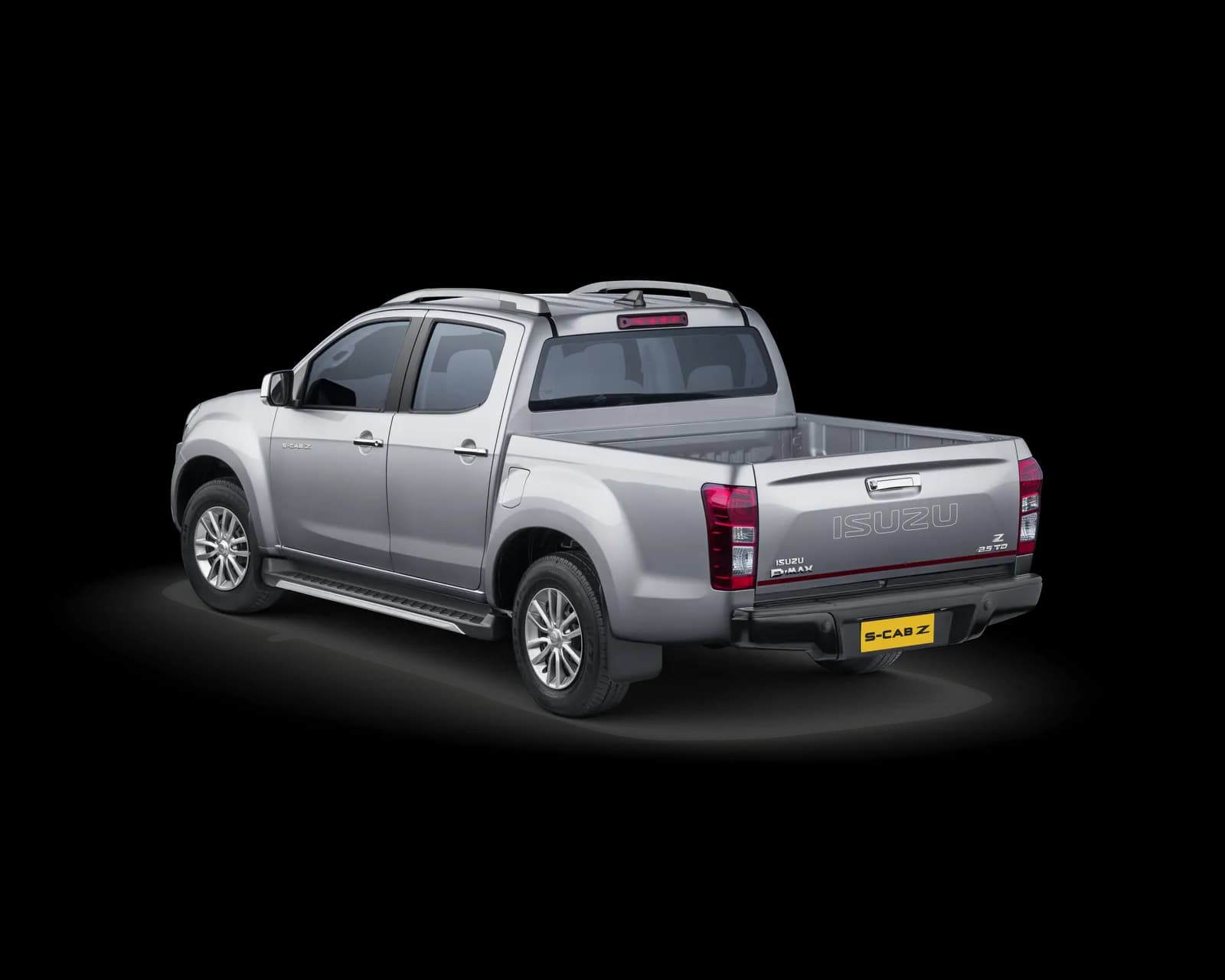

Gallery
See every angle
Variants
Find your configuration
Prices are indicative ex-showroom and subject to change. Request on-road pricing from your nearest Mahavir ISUZU showroom.
Next step
Book a test ride
Experience the S-CAB Z at your nearest Mahavir ISUZU showroom. Our advisor will confirm timing and location.
